MOVICON
Bevel-Helical Gear Units
- Space-saving and flexible integration
- Wide range of configuration options
- Auxiliary drive option

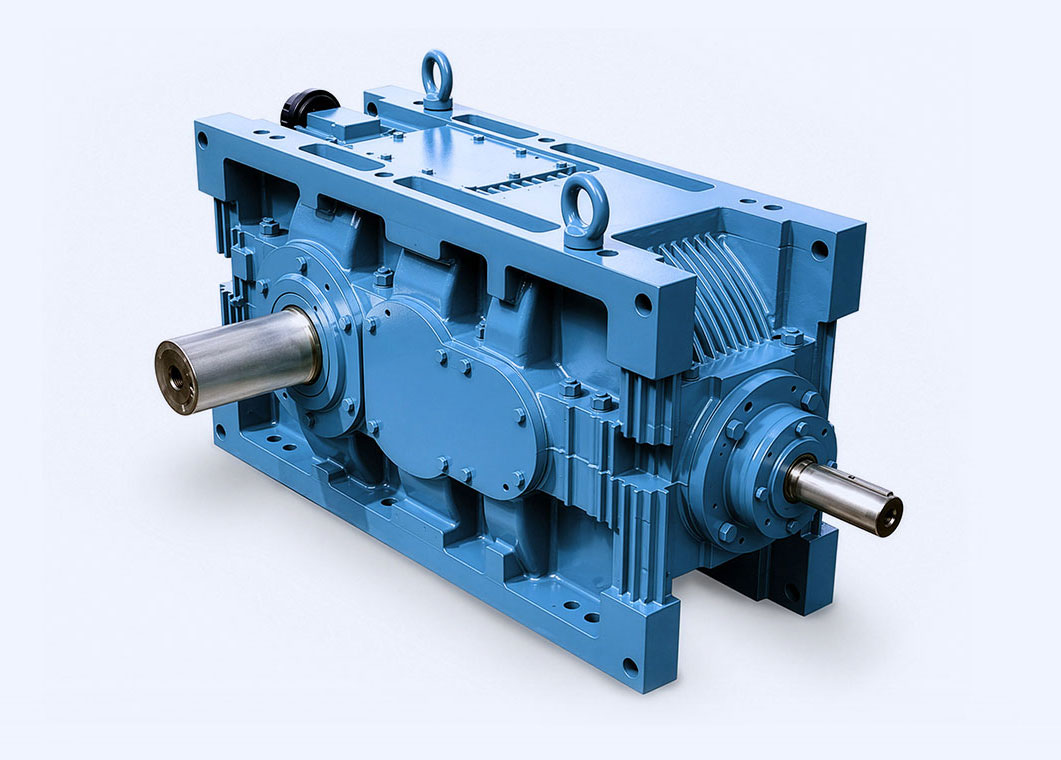

MOVICON Bevel-Helical Gear Units allow for flexible and space-saving integration into the application. Due to the 90-degree power transmission with a bevel gear in the first reduction stage, the motor can be operated parallel to the driven machine.
The standard product portfolio offers a wide range of configuration options. These include various solid and hollow shaft designs, as well as the option to add an auxiliary drive for e.g. maintenance purposes. The configuration can also be customized with taconite seals, cooling systems, motor lanterns and other components.
The gear units can be installed horizontally or vertically. With up to four gear ratios, they are highly versatile.

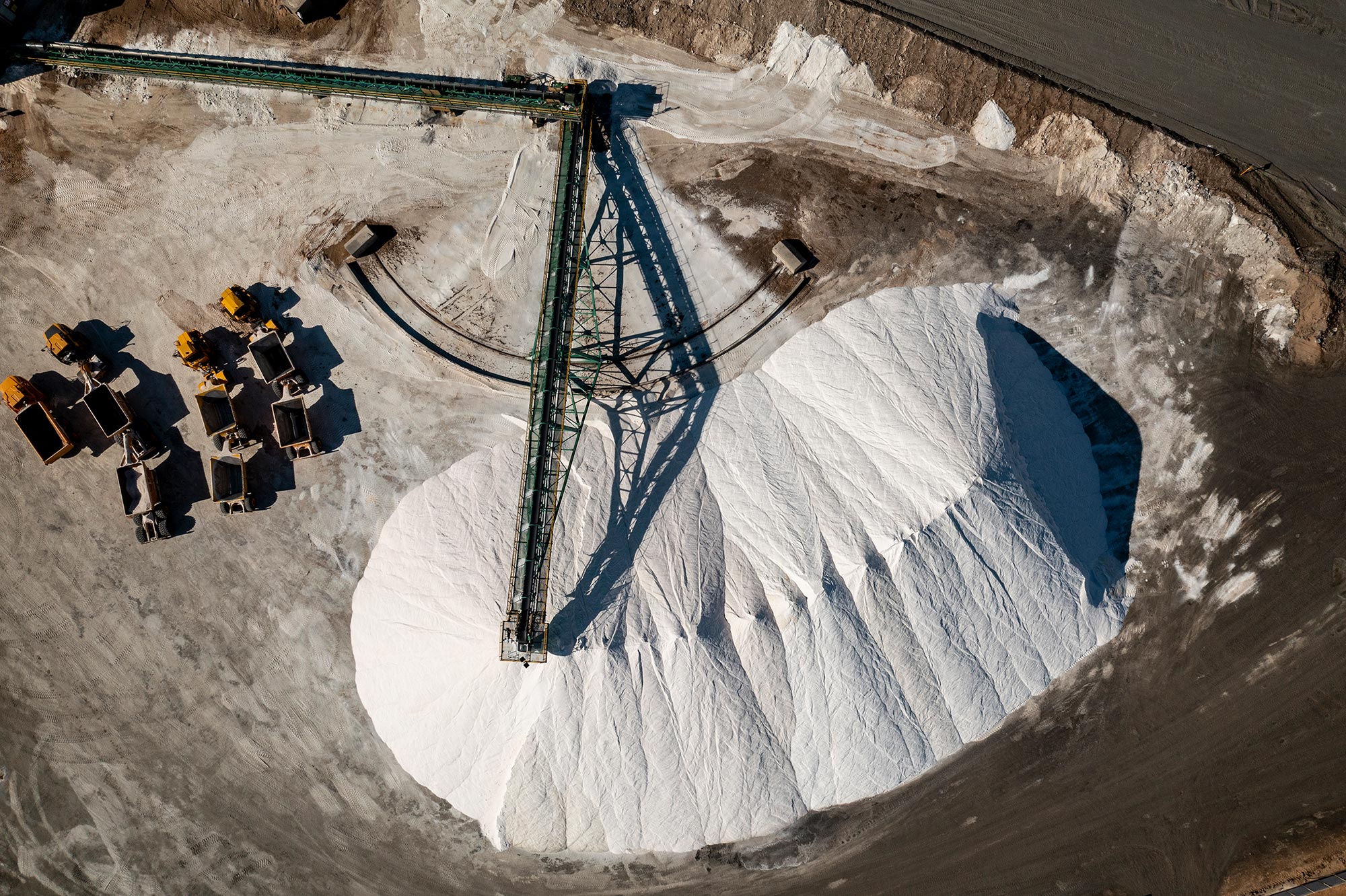

MOVICON Bevel-Helical Gear Units are suitable for conveyor belts, bucket elevators, ventilation systems and other applications.
Technical Data
| Power/ kW | up to 3,085 |
| Ratio range (i) | up to 450 |
| Torque range (TKN)/ Nm | up to 1,400,000 |
PDF Catalog
Here you can download our product catalog as a PDF.
