MOVICON
Flexible Couplings
- Easy installation and disassembly
- Bidirectional Torque transmission
- Explosion-proof version available
Technical Data
| Power (kW/rpm) | up to 2,835 |
| Ratio range (i) | up to 1,690,000 |
| Torque range (TKN)/ Nm | up to 1,749 |
PDF Catalog
Here you can download our product catalog as a PDF.

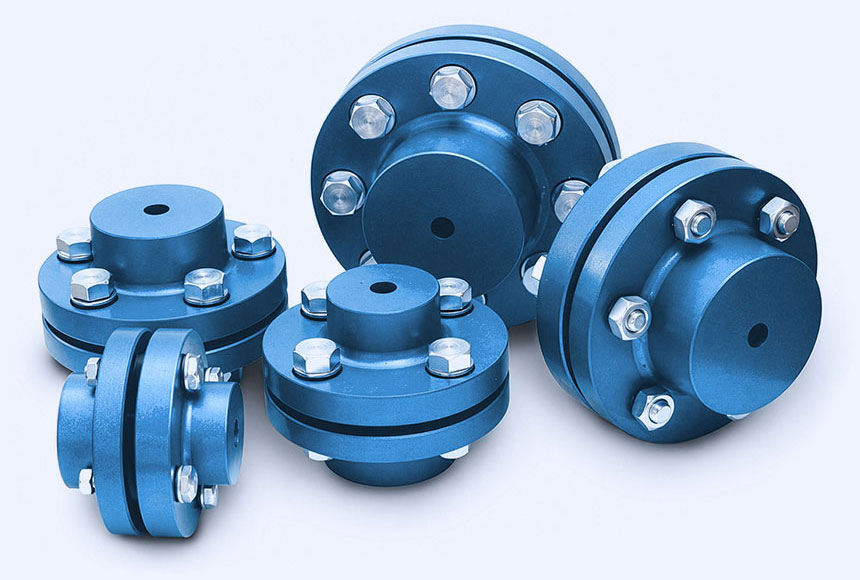

MOVICON Flexible Couplings are reliable pin and bush couplings designed to transmit torque and compensate for shaft misalignment. Thanks to their lubrication-free operation, low-wear elastomer bushes and simple plug-in system, the flexible couplings are easy to install and disassemble.
Power is transmitted via high-quality pins and bushes that dampen vibrations and compensate for axial, radial and angled shaft misalignment. Torque is transmitted in both directions without backlash, enabling the couplings to be used for reversible and continuous operations. The flexible couplings can be individually configured for each application to ensure optimal adaptation to the specific system. For that, options such as brake discs and axial displacement limits are available.
Additionally, MOVICON Flexible Couplings are available in explosion-proof versions in accordance with ATEX 2014/34/EU.
